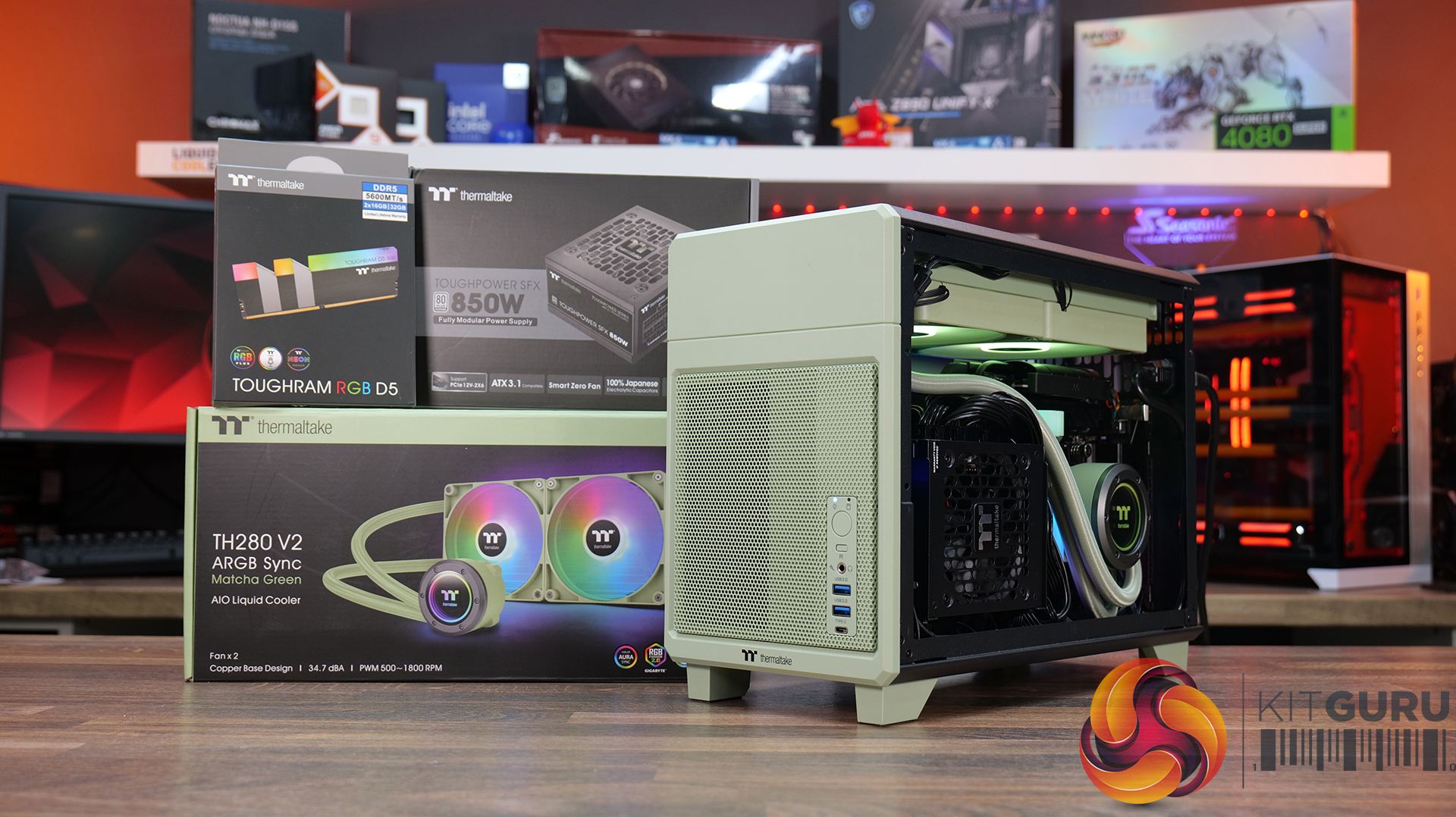

RX 9070 XT in Thermaltake TR100: Quiet SFF Beast Build

Today’s video is the latest instalment of our Thermaltake-sponsored build series, where we take a look at the company’s latest ITX case, the TR100. It’s a portable case with a small footprint, it supports big graphics cards, up to 280mm coolers, ITX motherboards and SFX power supplies. It's also available in several colours, including black, white, blue and pink, but we've chosen Matcha Green for the theme.

Timestamps:

00:29 Case Details / Pricing / H/W Support
02:41 Taking the case apart / features
06:01 GPU Support
07:34 Rear / PSU / Mobo / Cables
08:35 Floor
08:54 Storage Support
09:12 Hardware For the Build
10:52 Timelapse build
15:17 System is built – some thoughts

Case – Thermaltake TR100 Matcha Green – Available now from Scan priced at £109.99 HERE

• The TR100 is a dual-chamber Mini-ITX chassis designed for users who require both performance and portability, thanks to its 18.4-litre capacity and compact footprint, which provides flexibility for work and gaming setups.
• It supports ITX motherboards, SFX power supplies, two 120 or 140mm fans, up to a 280mm AIO CPU cooler and is equipped with ventilated panels for optimal cooling as well as up to two 2.5-inch SSDs. A 3.9-inch LCD screen kit and a carrying suitcase can be bought separately.
• TR100 is also equipped with accessible tool-free modular panels, removable dust filters on intake air panels and a handy front I/O with audio, two USB Type-A and one Type-C port.

Specifications

• Case Type: Mini Case
• Dimensions (LxWxH): 294 x 179 x 391 mm
• Material: Steel (SPCC)
• Motherboard Support: 6.7” x 6.7” (Mini ITX)
• Expansion Slots: 3
• Storage Bays: 2 x 2.5”
• Max GPU Length: 360mm
• MAX GPU Width: 70mm
• Max CPU Cooler Height: 68mm
• Max PSU Size: SFX/SFX-L
• Pre-installed Fans: N/A
• Fan Support: 2 x 120mm / 2 x 140mm
• Radiator Support: 120 / 140 / 240 / 280mm
• Dust Filters: Top, Front, R/H Side, L/H Side
• Font I/O: USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1
• LCD Screen: 3.9 Inch (optional)

CPU Cooler – Thermaltake TH280 V2 ARGB Sync Matcha Green – Available now from Amazon priced at £104.06 HERE

• TH280 V2 ARGB Sync is equipped with a copper micro-skived cold plate and Thermaltake CT14 ARGB PWM 140mm fans.
• It features a 360-degree rotating cap with ARGB lighting effects and an infinity mirror design.
• 460mm Long rubber low-evaporation tubing covered with premium braided sleeving and compatible with all current Intel and AMD desktop platforms.

Specifications

• Socket Compatibility: Intel LGA 2066/2011/1851/1700/1200/115X,
• AMD AM5/AM4/AM3+/AM3/AM2+/AM2
• Radiator Dimensions: 317 x 139 x 27 mm
• Tube Material: Rubber
• Base plate Material: Copper
• Radiator Material: Aluminium
• Pump Voltage: 12 V & 5V
• Pump Connector: 2510–4 Pin / 5V ARGB header–3 Pin
• Fan Dimensions: 140 x 140 x 25 mm
• Fan Speed: PWM 500~1800 R.P.M
• Noise Level: 34.7 dBA
• Air Flow: 84.32 CFM
• Air Pressure: 3.02 mm-H2O
• Fan Connector: 2510 – 4 Pin PWM, 5V ARGB header – 3 Pin
• Bearing: Hydraulic Bearing

Power Supply – Thermaltake TOUGHPOWER SFX 850W Platinum ATX 3.1 – Available from Amazon priced at £175.15 HERE

• Fully Modular ATX 3.1 and SFX 4.1 compliant, PCIe Gen 5 compatible and 80+ Platinum certified.
• Features a Native 12v2x6 PCIe connector.
• SFX dimension of 125mm x 103.8mm x 63.5mm and comes with an ATX adaptor bracket

Specifications

• Type: SFX
• Dimension: 125mm(W)x63.5mm(H)x103.8mm(D)
• Efficiency: Meet 80 PLUS Platinum at 115Vac input.
• Power Factor Correction: Active PFC
• Support C6/C7 power state:
• AC Input: 100- 240V ～
• Total Power: 850W
• Lighting Effect: N/A
• Cooling System: 9cm FDB Fan
• Silent Mode: Fan will not spin until the load exceeds 30%

Build Specification:

• CPU – AMD Ryzen 7 9800X3D
• Motherboard – ASROCK Phantom Gaming B850i Lightning WiFi
• Graphics Card – Sapphire AMD Radeon RX 9070 XT Nitro+
• Memory – 32GB (2 x 16GB modules) Thermaltake TOUGHRAM XG RGB D5 DDR5-5600
• Storage – 1TB Corsair MP600 Elite PCIe Gen4x4 NVMe M.2 SSD
• CPU Cooler – Thermaltake TH280 V2 ARGB Sync
• Power Supply – Thermaltake TOUGHPOWER SFX 850W Platinum
• Case fans – N/A
• Chassis – Thermaltake TR100 Matcha Green
• Operating System – Windows 11

KitGuru says: The Thermaltake TR100 is a small ITX case but an interesting one to build with, it has good cable routing and management options, great hardware support and excellent cooling for an SFF chassis.
